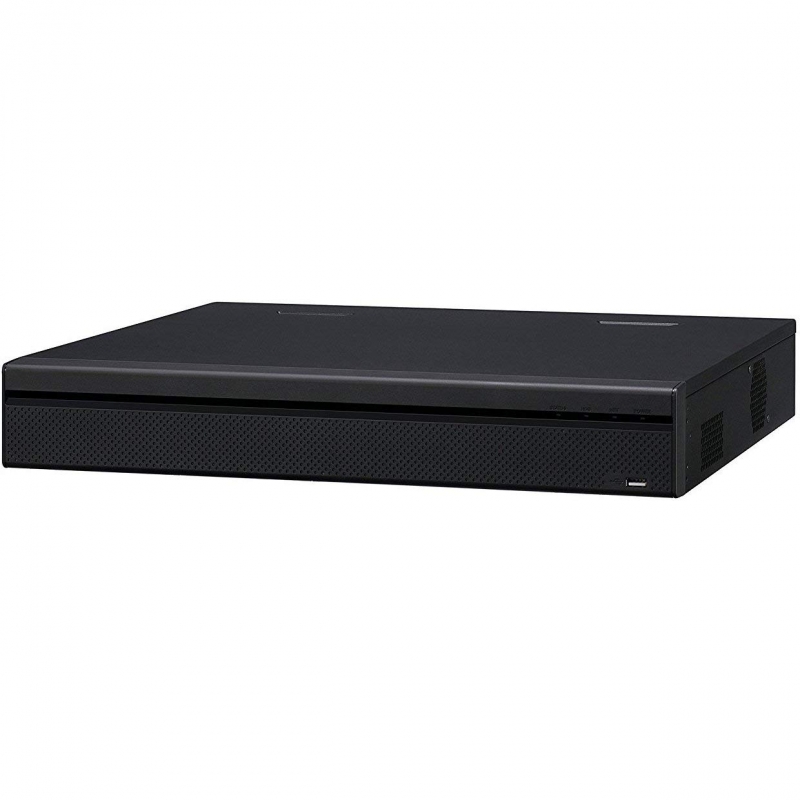

This Dahua all in one 4 channel Pentabrid DVR XVR5104H-S2 accepts five different types of cameras including IP, CVI, TVI, AHD, and Analog. With this many choices, you will be covered no matter what camera you may have. With it’s easy BNC style connections, connecting and setting up your DVR is a breeze. Stream full HD video over coaxial without having to change your existing wires out.

ATT: This is a genuine OEM Dahua DVR. Beware of the cheaper Chinese units out on the market which the firmware can’t be upgraded. With our company, you get a 5 year warranty, free US tech support, Fast free shipping, and US stocked product, something our Chinese competitors can’t compete with.

Features:

4 Channel Penta-brid 1080P Mini 1U Digital Video Recorder
Embedded processor
H.264+/H.264 dual-stream video compression
Support HDCVI/AHD/TVI/CVBS/IP video inputs
Max 6 channels IP camera inputs

Technical Specification:

System
Main Processor : Embedded Processor
Operating System : Embedded LINUX
Video and Audio
Analog Camera Input: 4 Channel, BNC
HDCVI Camera 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera : 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera : 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera : PAL/NTSC
IP Camera Input : 4+2 Channel, each channel up to 5MP
Audio In/Out :1/1, RCA
Two-way Talk : Reuse audio in/out, RCA
Recording
Compression : H.264+/H.264
Resolution : 4M-N, 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate : Main stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)Sub steram: D1/CIF/QCIF(1~15fps)
Bit Rate :1Kbps ~ 6144Kbps Per Channel
Record Mode:Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval : 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord:10 ~ 300 sec
Display
Interface :1 HDMI ,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display
When IP extension mode not enabled:
4CH: 1/4
When IP extension mode enabled:
4CH: 1/4/6
OSD : Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface : 4CH: 1 RJ-45 Port (100M)
Network Function : HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP,
DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search
(Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access : 128 users
Smart Phone : iPhone, iPad, Android
Interoperability : ONVIF 2.42, CGI Conformant
Video Detection and Alarm
Trigger Events : Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection : Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input :N/A
Relay Output : N/A
Playback and Backup
Playback : 4CH: 1/4
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next
File, Previous File, Next Camera, Previous Camera, Full
Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode : USB Device/Network
Storage
Internal HDD : 1 SATA Port, up to 8TB capacity
eSATA : N/A
Auxiliary Interface
USB : 4CH:2 USB 2.0
RS232 : N/A
RS485 : 1 Port, for PTZ Control
Electrical
Power Supply : DC12V/2A
Power Consumption <10W (Without HDD)
Construction
Dimensions : Mini 1U, 325mm×255mm×55mm (12.8″ x 10″ x 2.2″)
Net Weight : 1.5kg (3.3 lb) (without HDD)
Gross Weight : 2kg (4.4lb)
Installation Desktop installation
Environmental
Operating Conditions :-10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Storage Conditions : -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
Third-party Support : Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications : FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN
50130, EN 55024
UL: UL 60950-1

Disclaimer:

Dahua is the 2nd largest OEM manufacturer in the world. Most of Dahua product sold in the US are the non-branded OEM versions. The non-branded product is the exact same item, but the Dahua logo is removed and they use a different OEM part # on the sticker.

We are able to get non-branded versions at lower costs and therefore offer our customers lower prices. The product that you order is manufactured by Dahua and carries their 5 year warranty.
